TF1500 Tunnel Freezer Tunnel Quick Freezer Machine
TF1500 Tunnel Freezer Tunnel Quick Freezer Machine
1、Product Application:
1). Aquatic products: raw shrimp, shrimp, fish meat, shells, etc.;
2). Meat: poultry meat, cut meat, etc.;
3). Noodles: dumplings, steamed stuffed buns, glutinous rice balls, spring rolls, etc.;
4). Conditioning food: marinated products, prepared dishes, etc.
2、Product Description:

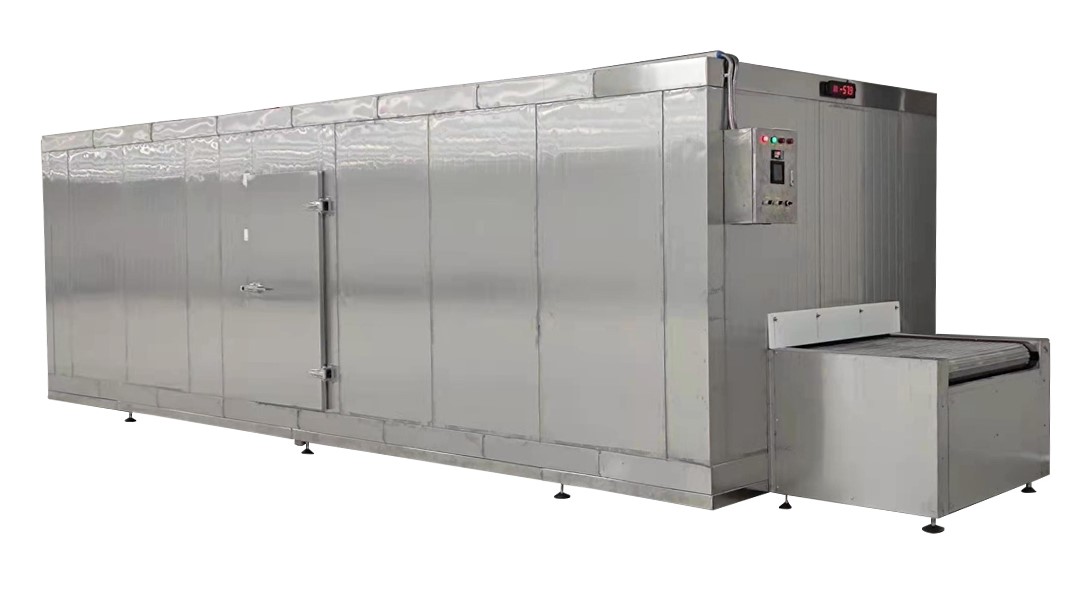

The shape of the tunnel quick freezer is a rectangular tunnel, in which cold air circulates and food is quickly frozen
when passing through the tunnel.
The device has simple structure, fast freezing speed, can realize continuous production, and is suitable for assembly
line processing. The food can be frozen within 60 minutes, and the center temperature can reach below -18°C.
Incoming temperature/outgoingtemperature: +15°C/-18°C. The equipment is designed and manufactured in accordance
with HACCP requirements to ensure food hygiene and safety.

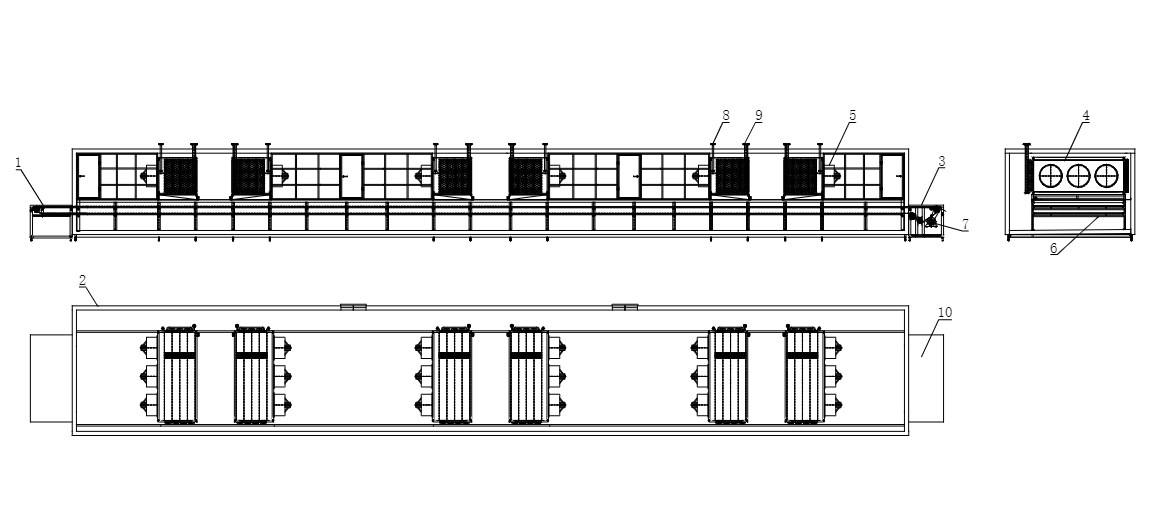

1. Feeding rack 2. Insulation storage body 3. Outlet 4. Evaporator
5. Circulating fan 6. Stainless steel footing frame 7. Transmission motor 8. Liquid supply pipe
9. Air return pipe 10. Mesh belt/plate belt
3、Product Categories：
According to the different conveyor belts, it can be divided into mesh belt tunnel quick freezer and plate belt tunnel
quick freezer.
Mesh Belt Tunnel Quick Freezer
The mesh belt tunnel quick freezer is suitable for quick-freezing processing of seafood, poultry meat, vegetables,
fruits, pasta, dairy products and other foods. The freezing amount can be 100Kg/h--2000Kg/h.
Structural features:
a 、Simple structure, convenient operation and long service life.
b 、The conveying mesh belt is made of high-strength SUS304 stainless steel mesh, which is safer to use, and the
frozen products will not leave traces directly on the surface of the mesh belt. Mesh belt width can be selected upon
request.
c 、According to the production requirements, the combination of single and double mesh belts can be selected.
d 、The thermal insulation storage body is made of double-sided SUS304 stainless steel polyurethane storage board,
with inspection doors, double-layer sealing devices and heating devices to prevent freezing.
e 、The air guide device in the warehouse adopts high-efficiency and low-noise axial flow fan and thermal fluctuation
technology, and the freezing efficiencyis increased by about 15%-30%.
f 、Use water to wash the cream to ensure cleanliness. The evaporator is made of aluminum alloy material, aluminum tube
and aluminum fins, which is easy to clean. The design of variable blade distance can effectively prevent frost blocking and
prolong the timeof frost flushing. The unique liquid supply method makes the heat exchange more sufficient and the effect
more obvious.
g、 The imported frequency converter realizes inorganic speed regulation, and the freezing time can be adjusted continuously
according to the needs, which can adapt to various freezing processes.
h、 Stainless steel electric control box, stable quality, safe and reliable, easy to operate. The control system is equipped with
a special alarmdevice andan emergency button to ensure the safe operation of the equipment.
Plate Belt Tunnel Quick Freezer
Plate belt tunnel quick freezer is suitable for quick-freezing processing of high-moisture, soft and liquid foods, such as
fresh meat, fish fillets, shrimp, scallops, pasta and other foods. The freezing amount can be 100Kg/h--2000Kg/h.
Structural features:
a、 Simple structure, convenient operation and long service life.
b、The storage body is made of rigid polyurethane foam, which has good thermal insulation performance. All internal
parts are made of SUS304. high-quality stainless steel, which is easy to clean and meets HACCP requirements.
c、Imported stainless steel strips are used, with high toughness and smooth surface.
d、The ice scraping device of the feeding belt can reduce the damage to the steel belt caused by ice and foreign objects.
e、According to the production requirements, single and double strip combinations can be selected.
f、Use water to flush the cream to ensure cleanliness
g、The imported frequency converter realizes inorganic speed regulation, and the freezing time can be adjusted
continuously according to the needs, which can adapt to various freezing processing
4、Product Performance Characteristics

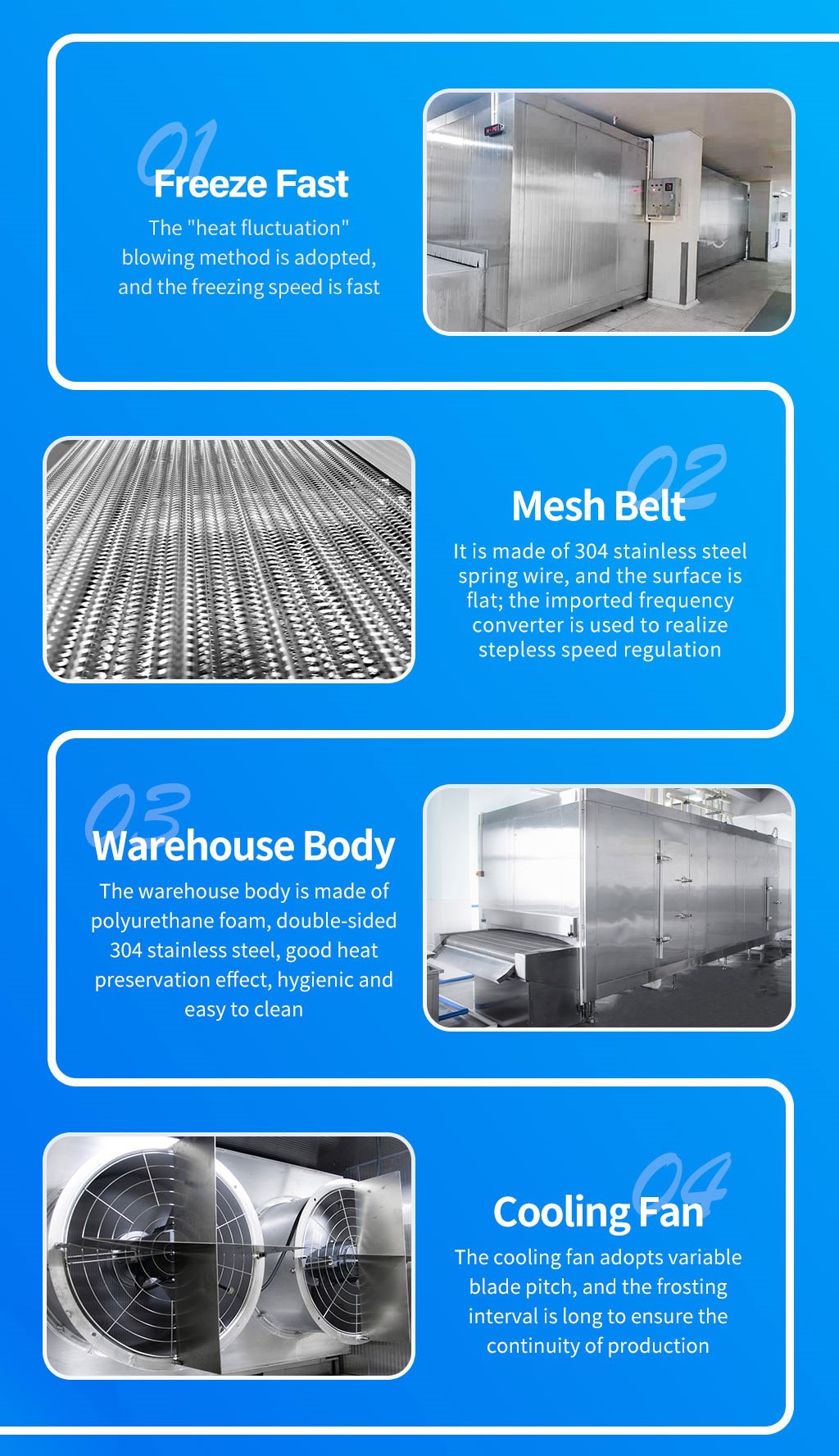

1). The"heat fluctuation"blowing method is adopted, and the freezing speed is fast;
2). Rapid freezing at -35°C;
3). It is made of 304 stainless steel spring wire, and the surface is flat; the imported frequency converter is used to
realize stepless speed regulation;
4). The cooling fan adopts variable blade pitch, and the frosting interval is long to ensure the continuity of production;
5). The warehouse body is made of polyurethane foam, double-sided 304 stainless steel, good heat preservation effect,
hygienic and easy to clean.
5、Product Advantages
High efficiency and energy saving: The tunnel quick freezer warehouse adopts advanced freezing technology and optimized air
flow design, which can quickly freeze food to the required temperature in a short period of time, greatly improving production
efficiency. At the same time, the tunnel quick-freezing warehouse can precisely control the temperature and humidity, reduce
energy consumption and reduce operating costs.
Maintain food quality: The design of the tunnel quick freezer is reasonable, and it can evenly blow cold air into every corner to
ensure that the food is frozen quickly and maintains its fresh taste and nutritional content. The rapid convection of the cold air
can also prevent the surface of the food from freezing and oxidation, and prolong the shelf life of the food.
Space-saving: The design of the tunnel quick-freezer is compact and can be customized and installed according to actual needs.
Compared with other types of quick freezer equipment, the tunnel quick freezer warehouse takes up less space, which can
maximize the use of factory space and increase production capacity.
Flexible and diverse: the tunnel freezer is suitable for food processing enterprises of various types and sizes, and can freeze a
variety of foods, such as meat, seafood, fruits, vegetables, etc. At the same time, the tunnel quick freezer warehouse can be
adjusted and optimized according to different product requirements and production processes, with high flexibility
