1000Kg/h IQF Tunnel Quick Freezer for Sale

The IQF Tunnel chamber is an important technology in the modern quick-frozen food industry.

It has attracted widespread attention for its high efficiency, energy saving, and high-quality features. It is of great significance for improving quick-frozen food quality and production capacity. Therefore, the development prospects of the IQF Tunnel warehouse are extensive.

1、Product Application:

1). Aquatic products: raw shrimp, shrimp, fish meat, shells, etc.;

2). Meat: poultry meat, cut meat, etc.;

3). Noodles: dumplings, steamed stuffed buns, glutinous rice balls, spring rolls, etc.;

4). Conditioning food: marinated products, prepared dishes, etc.

2、Product Description:

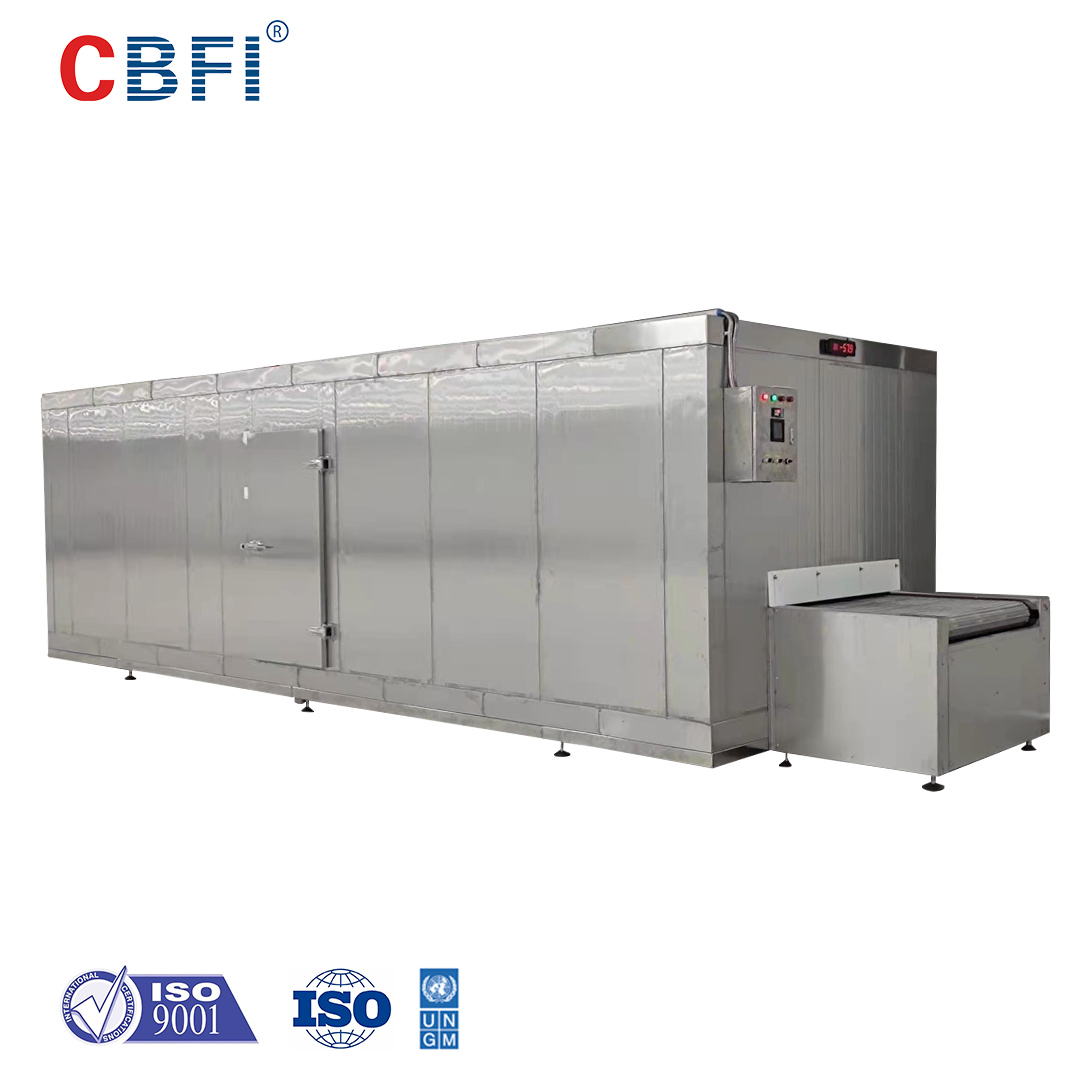

The shape of the IQF tunnel quick freezer is a rectangular tunnel, in which cold air circulates and food is quickly frozen

when passing through the tunnel.

The tunnel quick freezer has a simple structure and fast freezing speed, can realize continuous production, and is suitable for assembly

line processing. The food can be frozen within 60 minutes, and the center temperature can reach below -18°C.

Incoming temperature/outgoing temperature: +15°C/-18°C. The equipment is designed and manufactured in accordance

with HACCP requirements to ensure food hygiene and safety.

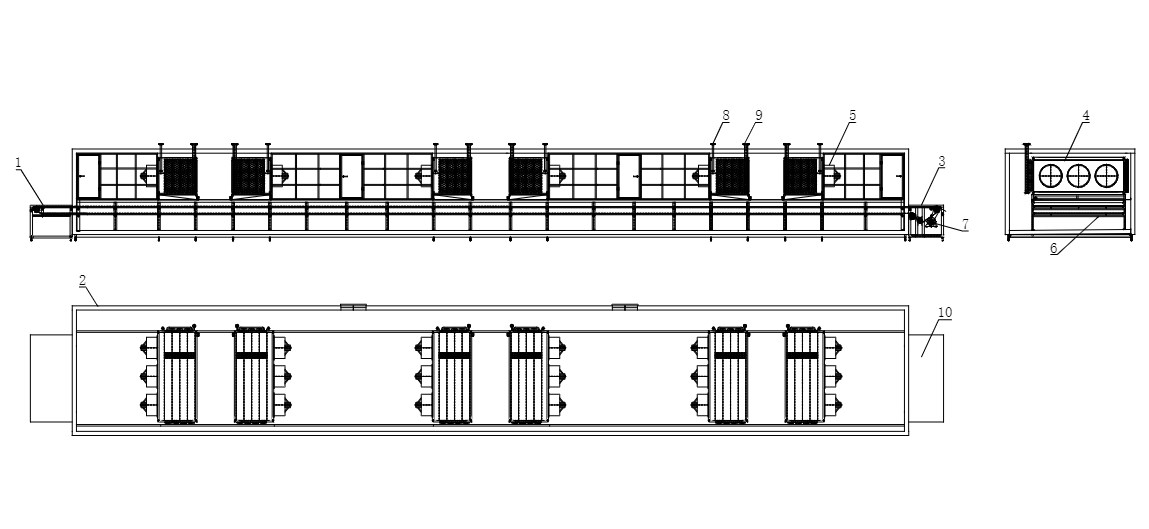

     1. Feeding rack             2. Insulation storage body                    3. Outlet                          4. Evaporator

     5. Circulating fan                 6. Stainless steel footing frame           7. Transmission motor      8. Liquid supply pipe

     9. Air return pipe                  10. Mesh belt/plate belt

3、Product Categories：

The different conveyor belts can be divided into mesh belt IQF tunnel quick freezer and plate belt IQF tunnel

quick freezer.

Mesh Belt IQF Tunnel Quick Freezer

The mesh belt iqf tunnel quick freezer is suitable for the quick-freezing processing of seafood, poultry meat, vegetables,

fruits, pasta, dairy products, and other foods. The freezing amount can be 100Kg/h--2000Kg/h.

Structural features:

a 、Simple structure, convenient operation, and long service life.

b 、The conveying mesh belt is made of high-strength SUS304 stainless steel mesh, which is safer to use, and the

frozen products will not leave traces directly on the surface of the mesh belt. Mesh belt width can be selected upon

request.

c 、According to the production requirements, the combination of single and double mesh belts can be selected.

d 、The thermal insulation storage body is made of a double-sided SUS304 stainless steel polyurethane storage board,

with inspection doors,  double-layer sealing devices, and heating devices to prevent freezing.

e 、The air guide device in the warehouse adopts high-efficiency and low-noise axial flow fan and thermal fluctuation

technology, and the freezing efficiency is increased by about 15%-30%.

f 、Use water to wash the cream to ensure cleanliness. The evaporator is made of aluminum alloy material, aluminum tube

, and fins, which are easy to clean. The design of variable blade distance can effectively prevent frost blocking and

prolong the time of frost flushing. The unique liquid supply method makes the heat exchange more sufficient and the effect

more obvious.

g、 The imported frequency converter realizes inorganic speed regulation, and the freezing time can be adjusted continuously

according to the needs, which can adapt to various freezing processes.

h、 Stainless steel electric control box, stable quality, safe and reliable, easy to operate. The control system is equipped with

a special alarm device and an emergency button to ensure the safe operation of the equipment.

Plate Belt IQF Tunnel Quick Freezer

Plate belt iqf tunnel quick freezer is suitable for quick-freezing processing of high-moisture, soft, and liquid foods, such as

fresh meat, fish fillets, shrimp, scallops, pasta, and other foods. The freezing amount can be 100Kg/h--2000Kg/h.

Structural features:

a、Simple structure, convenient operation, and long service life.

b、The storage body is made of rigid polyurethane foam with good thermal insulation performance. All internal

parts are made of SUS304. high-quality stainless steel, which is easy to clean and meets HACCP requirements.

c、Imported stainless steel strips, with high toughness and smooth surface, are used.

d、The feeding belt's ice scraping device can reduce the steel belt damage caused by ice and foreign objects.

e、According to the production requirements, single and double-strip combinations can be selected.

f、Use water to flush the cream to ensure cleanliness

g、The imported frequency converter realizes inorganic speed regulation, and the freezing time can be adjusted

continuously according to the needs, which can adapt to various freezing processing

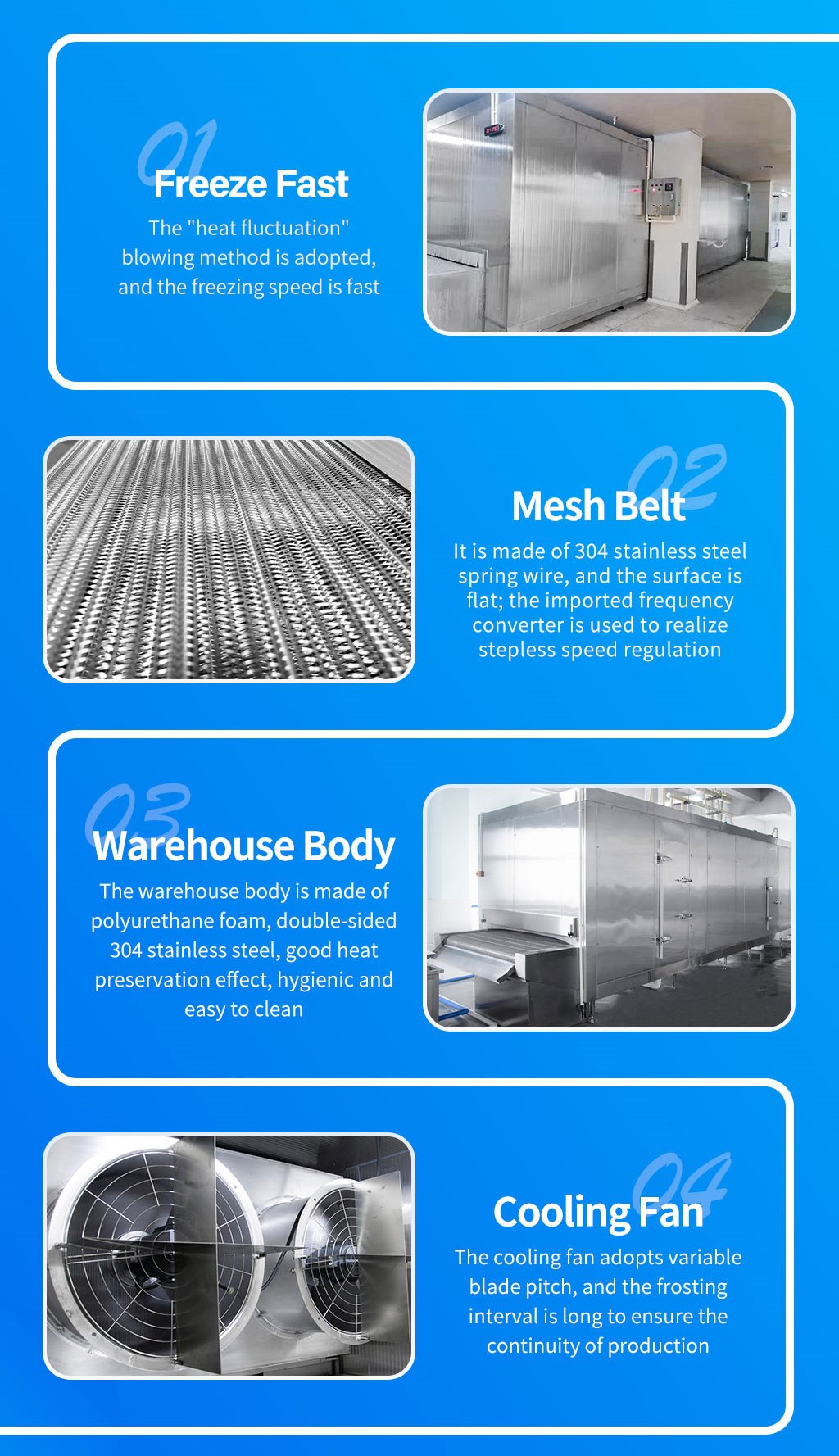

4、Product Performance Characteristics
1).  The"heat fluctuation"blowing method is adopted, and the freezing speed is fast;
2).  Rapid freezing at -35°C;
3). It is made of 304 stainless steel spring wire, and the surface is flat; the imported frequency converter is used to

realize stepless speed regulation;
4). The cooling fan adopts variable blade pitch, and the frosting interval is long to ensure the continuity of production;
5). The warehouse body is made of polyurethane foam, double-sided 304 stainless steel, good heat preservation effect,

hygienic and easy to clean.

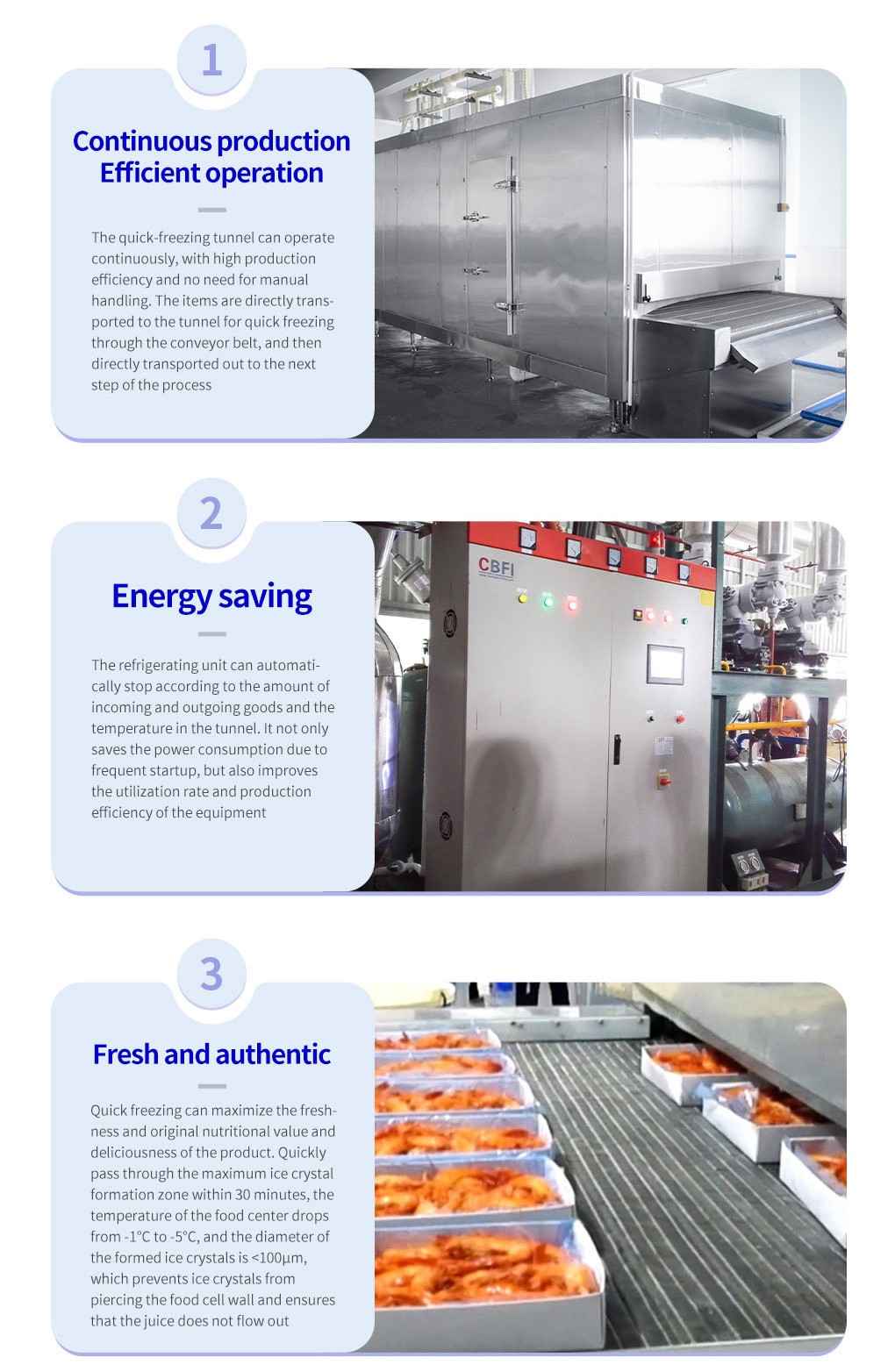

5、Product Advantages

1).Continuous and uninterrupted production, reducing manual handling

The quick-freezing iqf tunnel can realize continuous quick-freezing work and improve production efficiency. However, the entry

and exit of goods in the conventional quick-freezing warehouse can only be realized manually. The food is manually put into

the quick-freezing warehouse, the refrigeration equipment starts, and the food is rapidly cooled and frozen. When the

food is frozen, the refrigeration equipment is shut down. Manually move the goods out to low-temperature cold storage or

other places. The use of quick-freezing tunnels can save the manual handling process. The goods are transported to the

tunnel through the conveyor belt. After passing through the tunnel, the goods are quickly frozen and then transported out for

the next step.

2).Quickly freeze food, and maintain the original nutritional value, color, fragrance, and flavor of the food to the greatest extent

The food quickly passes through the maximum ice crystal formation zone within 30 minutes, so that the central temperature of

the food drops from -1°C to -5°C, and the diameter of the ice crystals formed is less than 100 μm, which prevents the ice crystal

from piercing the cell wall, reduces the outflow of juice, and quickly freezes the food. It is characterized by maintaining the original

nutritional value and color, fragrance, and flavor of the food to the greatest extent.

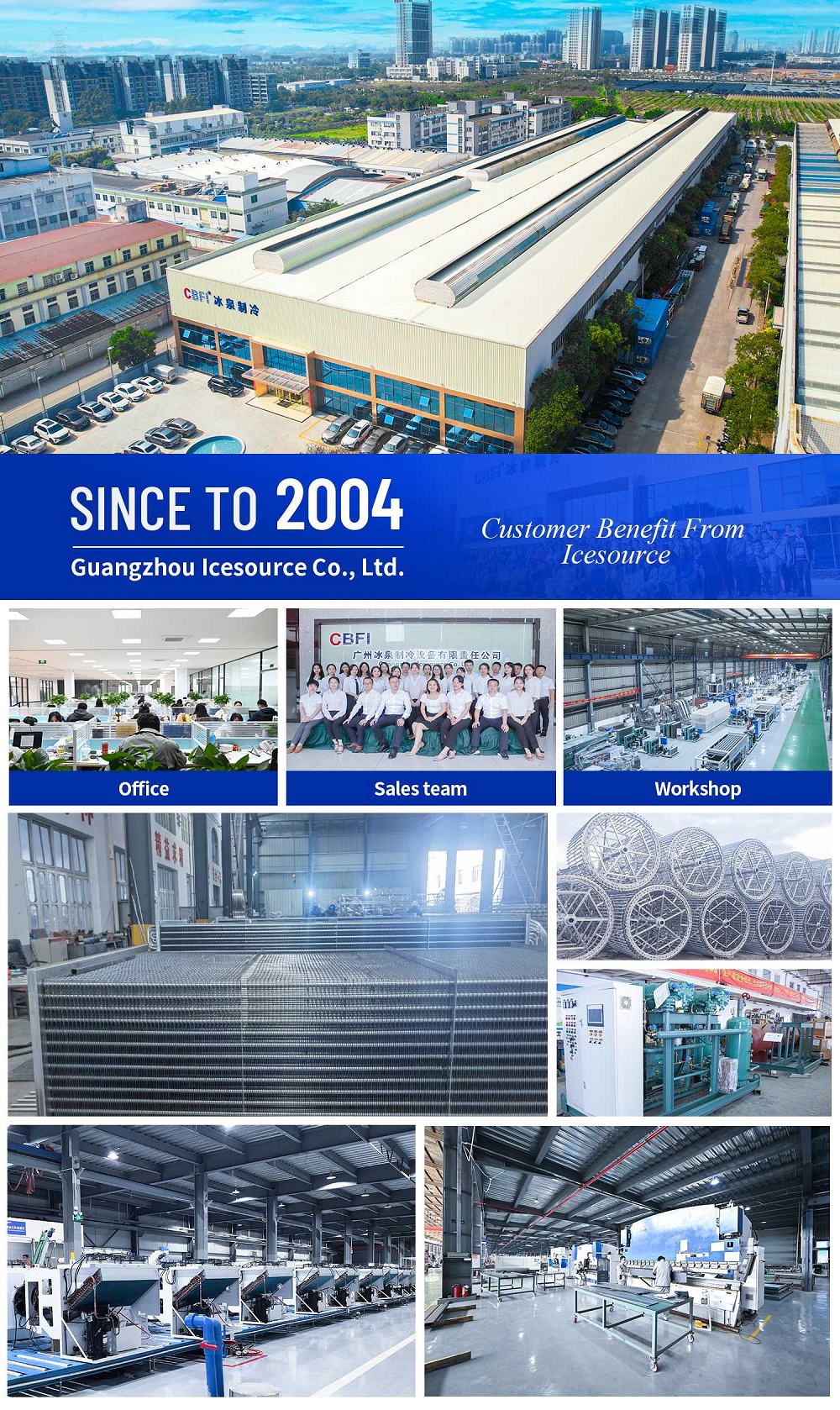

6、Company Profile
